Miami Rail Station | Robert Herrera

CONTRIBUTION / PORTFOLIO FOCUS

Academic station, public realm & climate studies

FIRM / CONTEXT

Florida Atlantic University

PORTFOLIO REFERENCE

Pages 180–185 / October 21 edition

THE PROJECT

Transit as civic ground.

Public ground, concourse and rail platforms are connected through a layered station proposal.

An exploded spatial study, plans, urban context, public-realm plan and environmental diagrams explore movement and climate. The station is an academic design study, not a representation of a completed station.

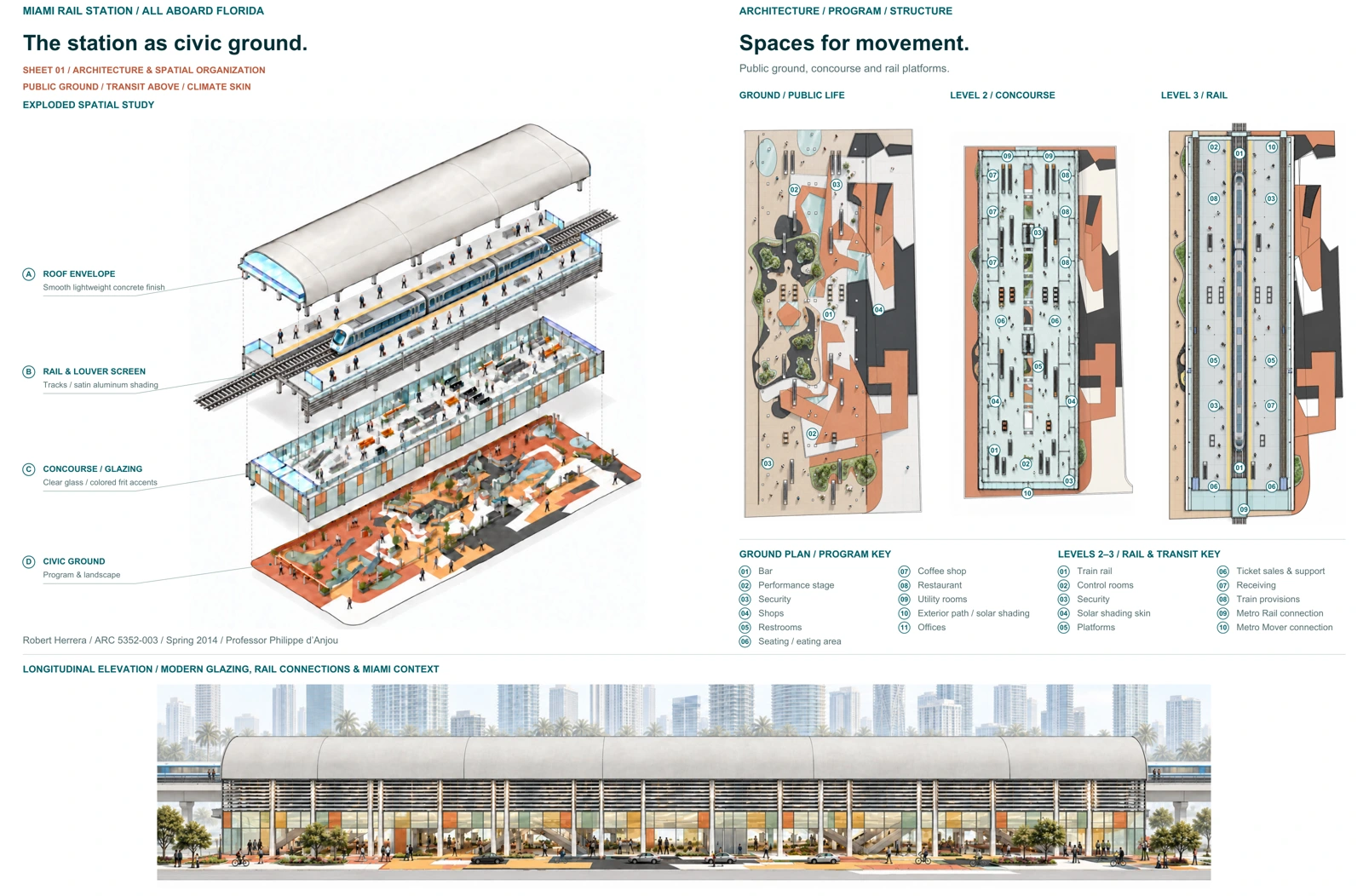

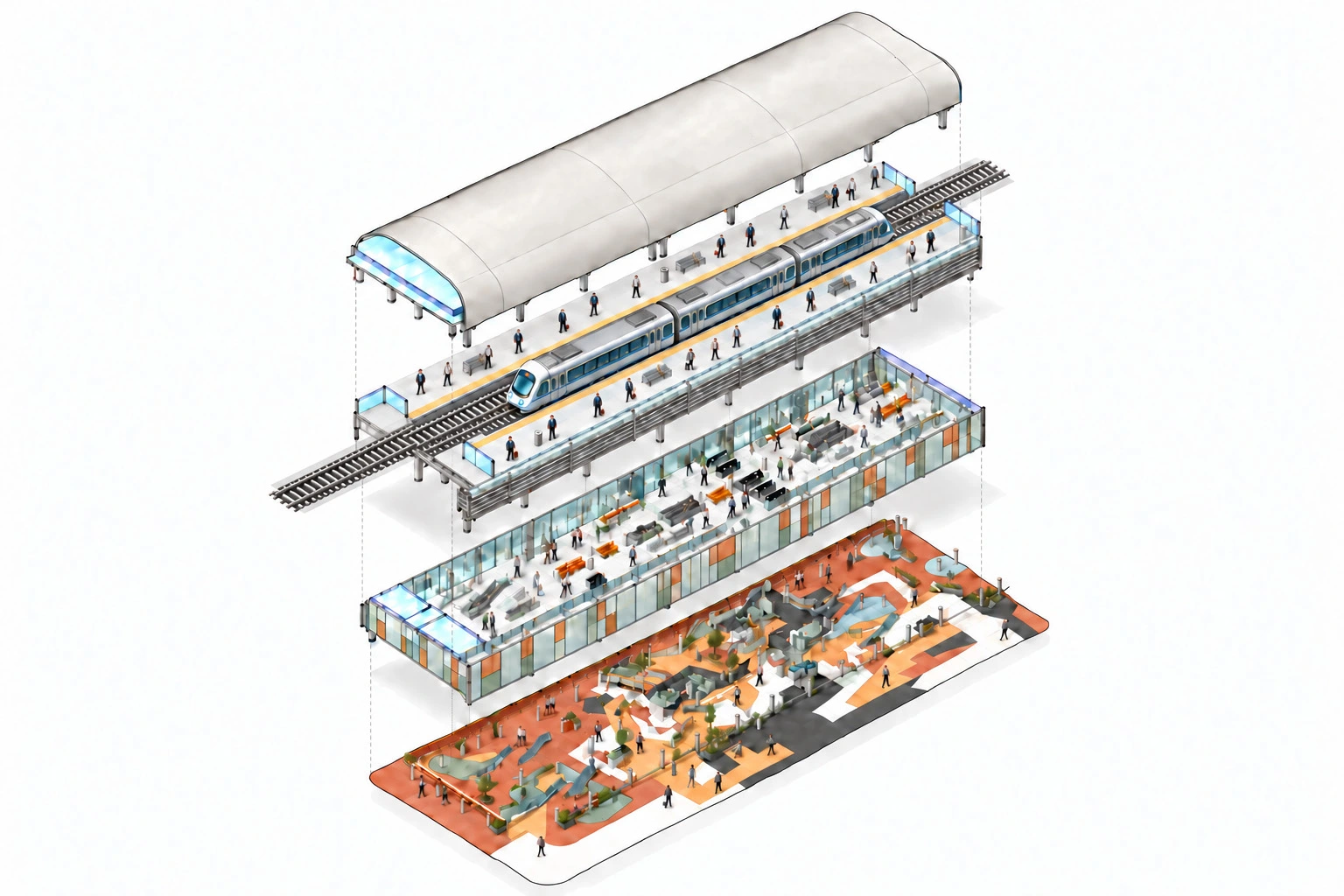

01 / Exploded station organizationProject presentation study

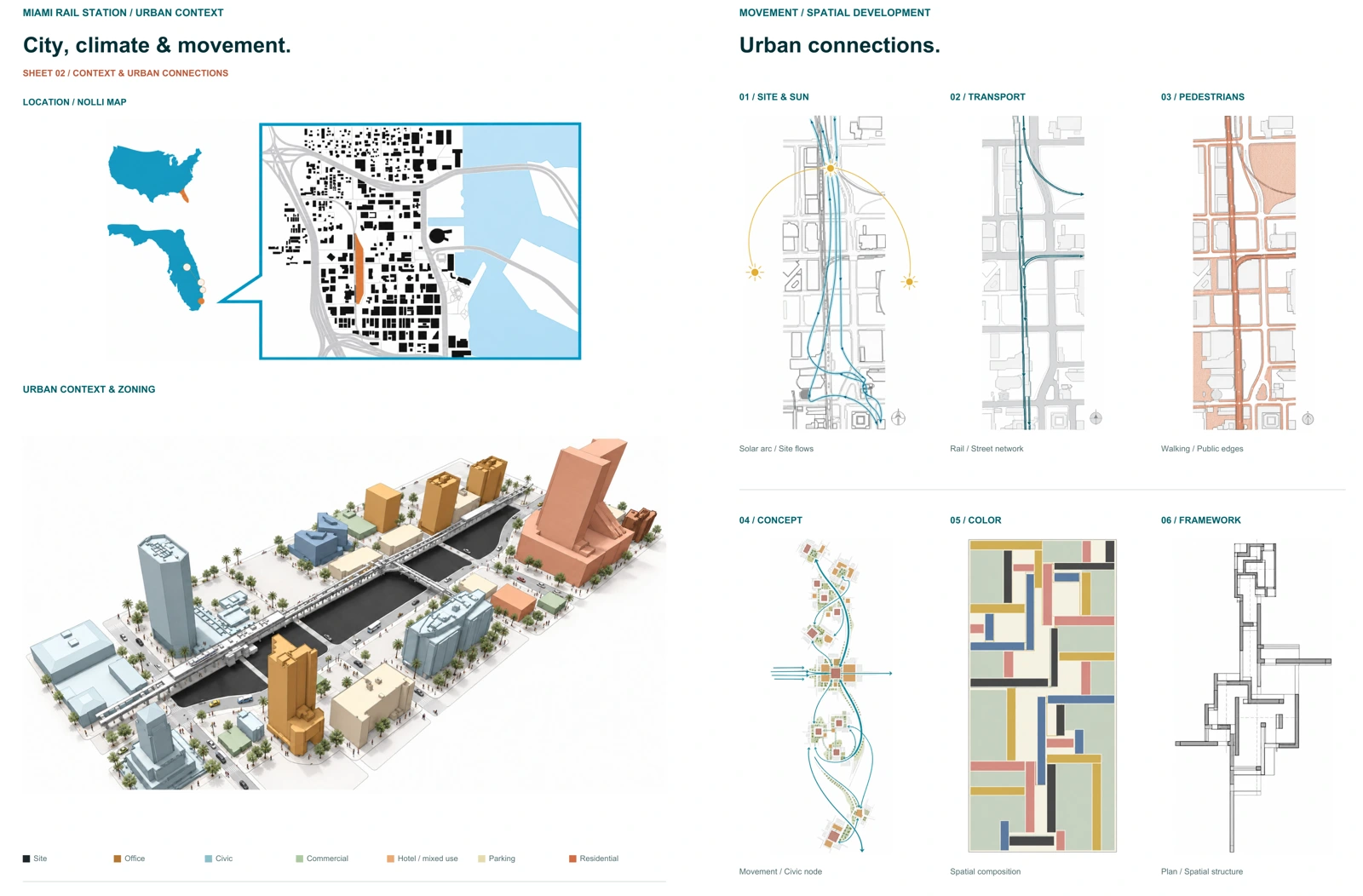

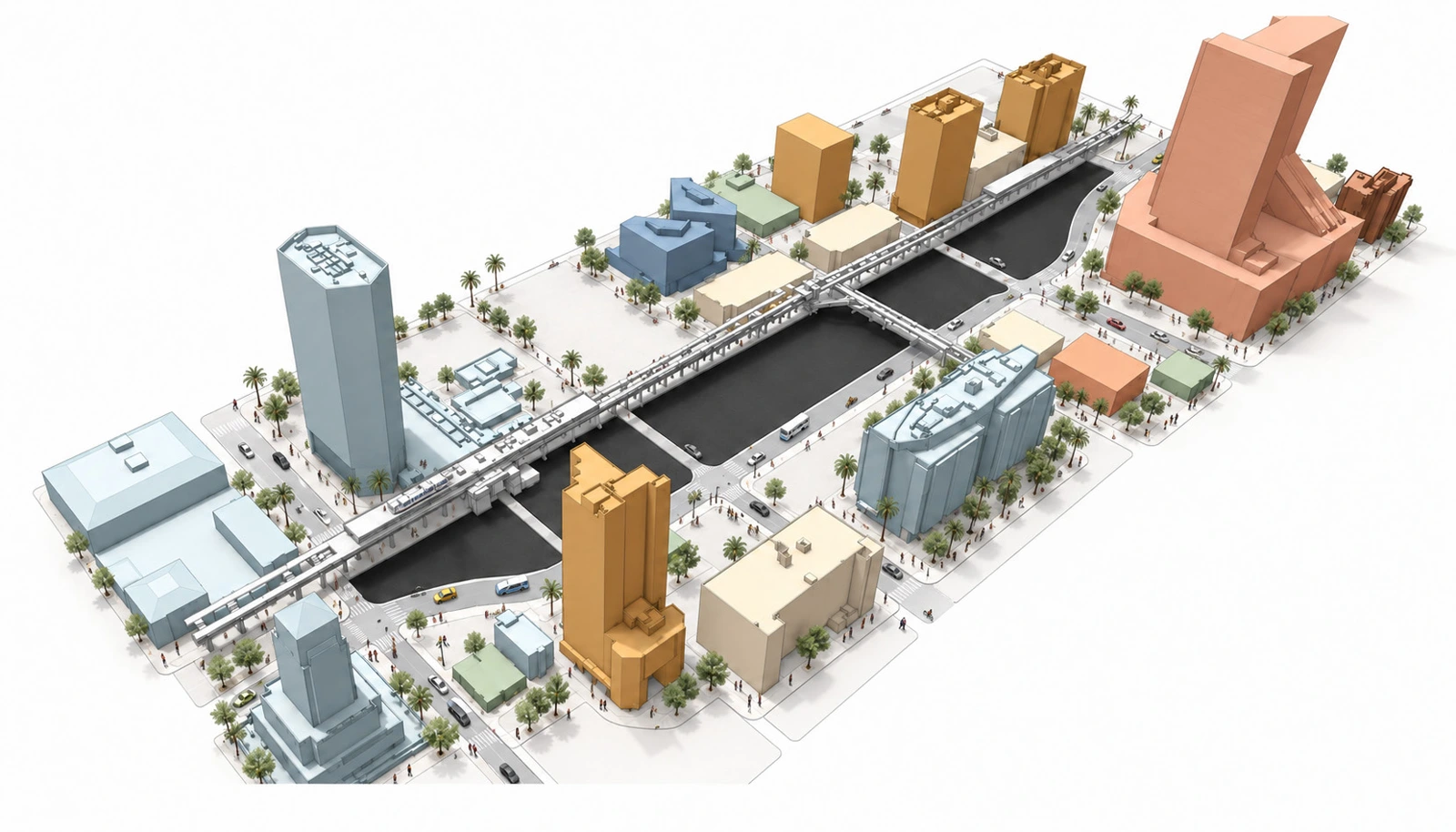

02 / Urban context & public connectionsProject presentation study

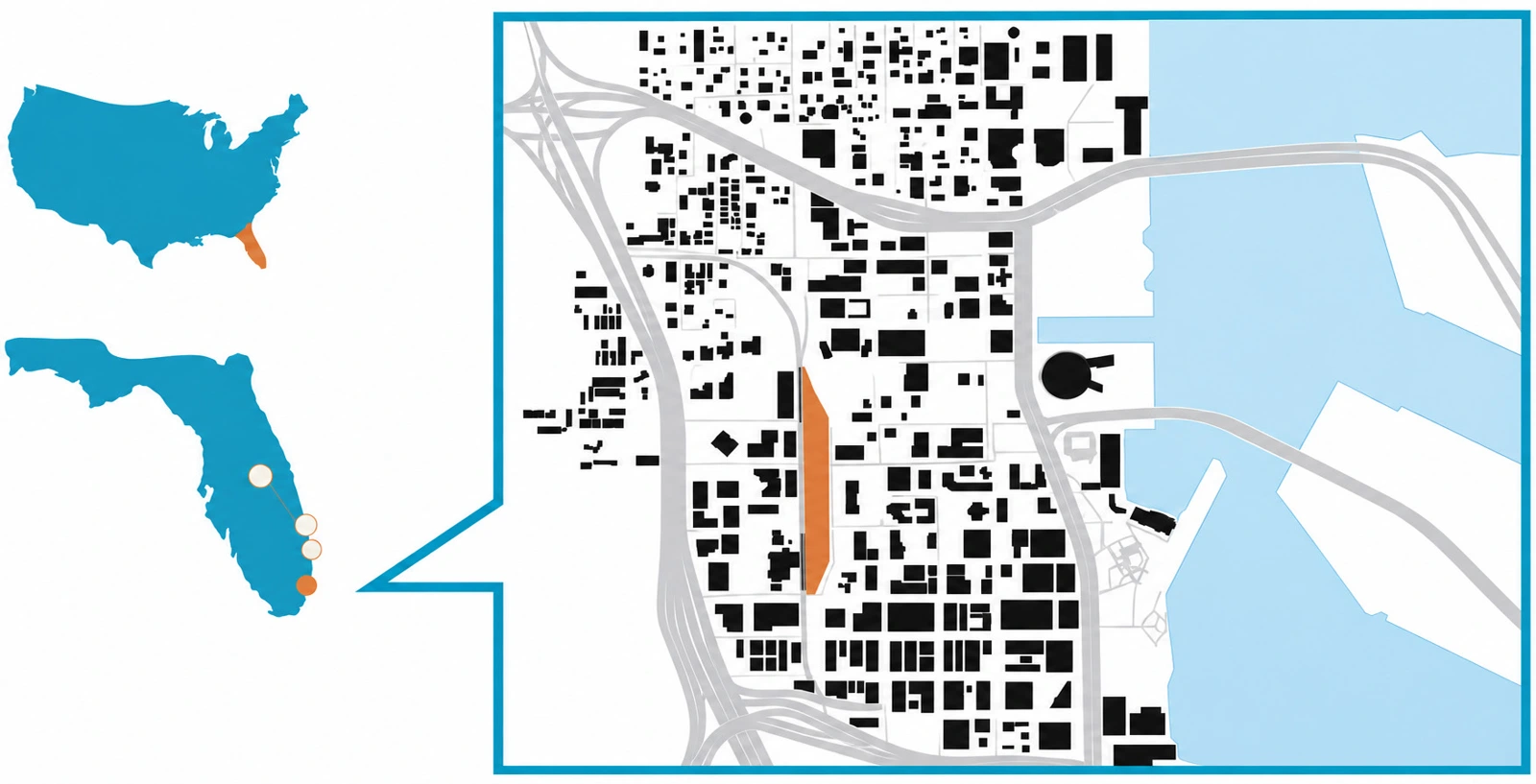

03 / Location & Nolli mapArchitectural study · not to scale

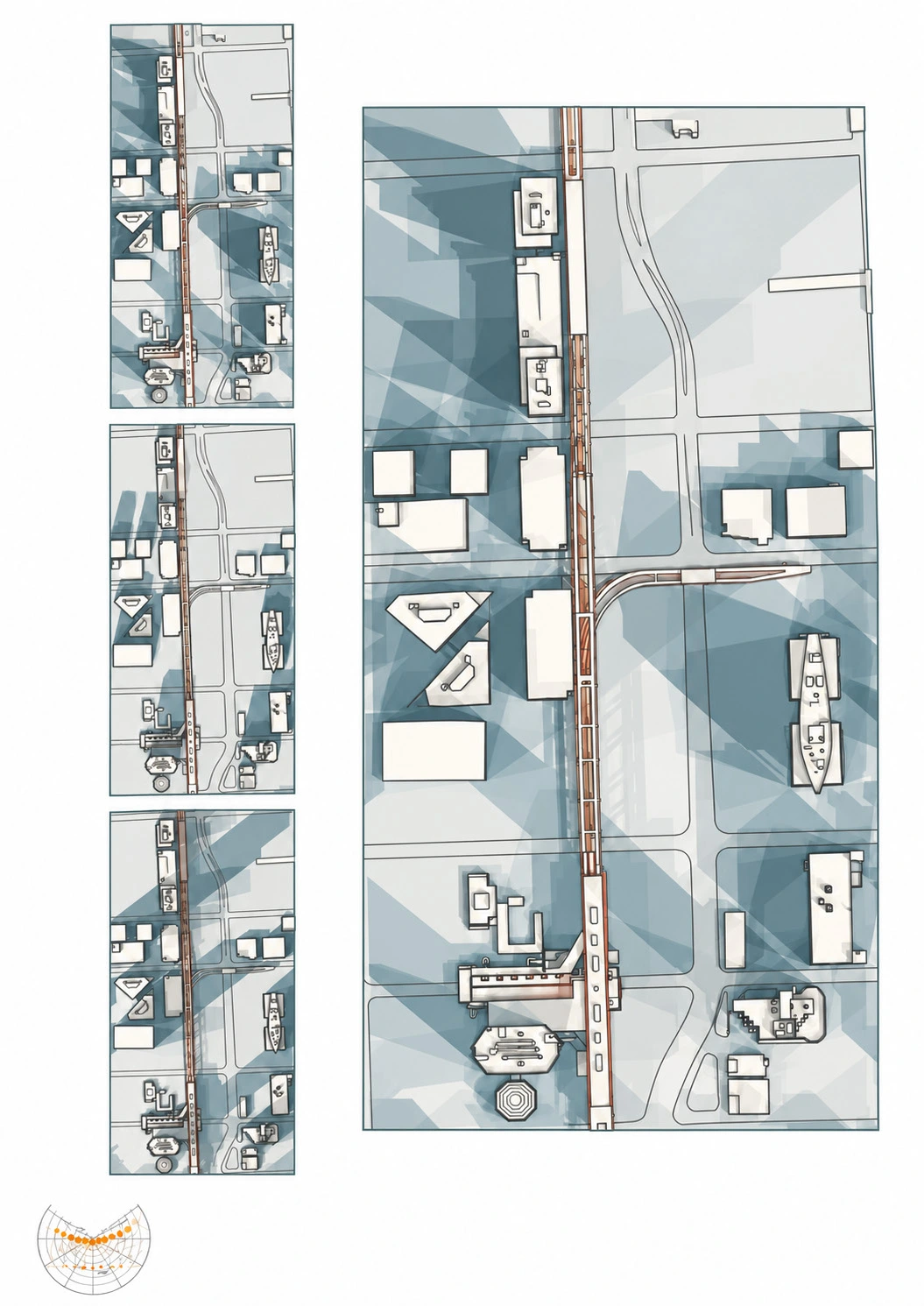

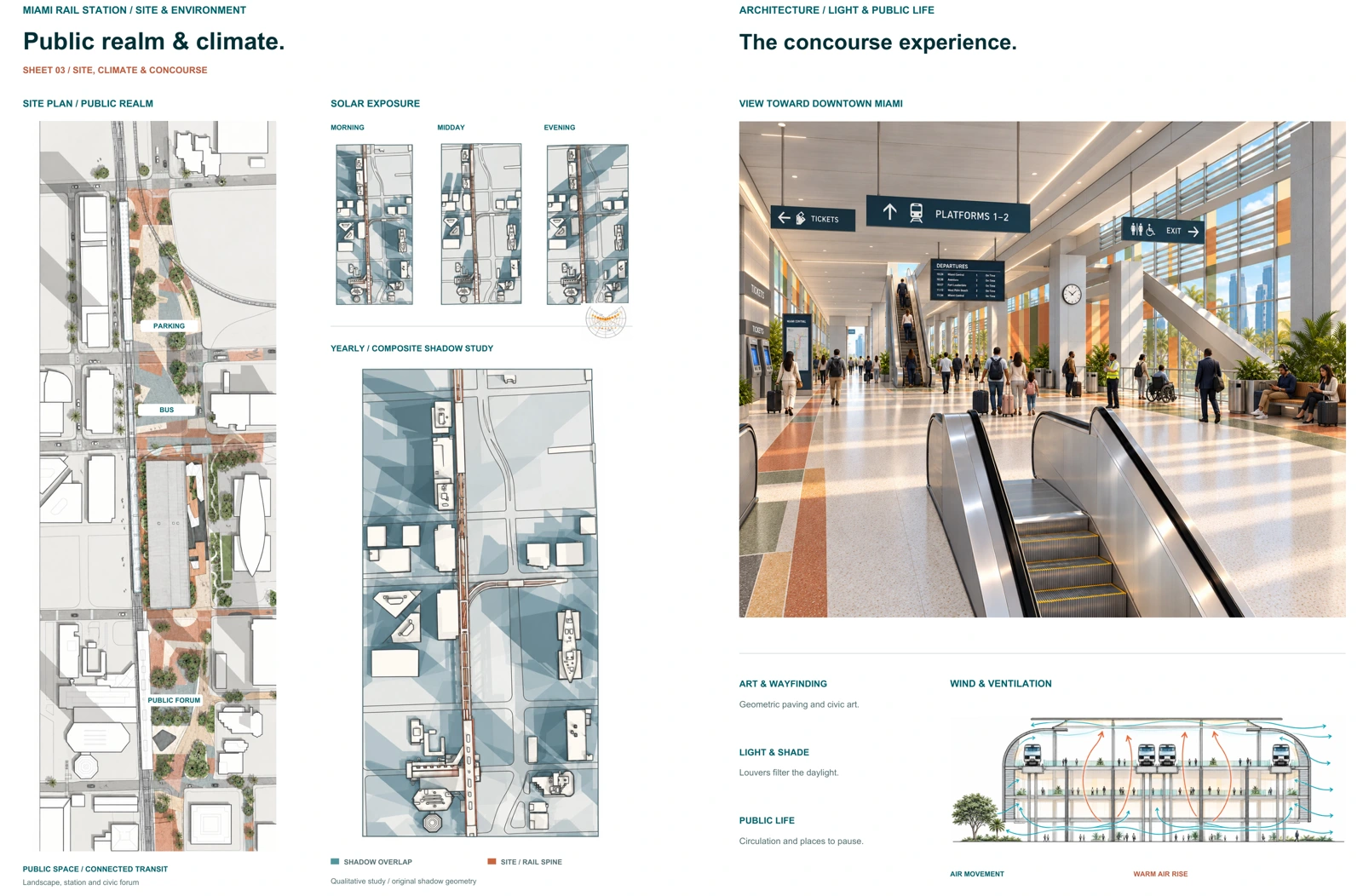

04 / Site plan & public realmArchitectural study · not to scale

THE COMPLETE PROJECT RECORD03 portfolio sheets ＋

Original presentation and technical studies from the restored portfolio. Drawings reproduced not to scale; source qualifications and team credits remain visible.

PROJECT & IMAGE NOTES

Project descriptions and credits follow the original portfolio. Visualizations present design intent and interpreted materials. Drawings are reproduced not to scale; the complete source record is available above.
